首页 所属类别:细胞计数板 所属品牌: Brand/普兰德

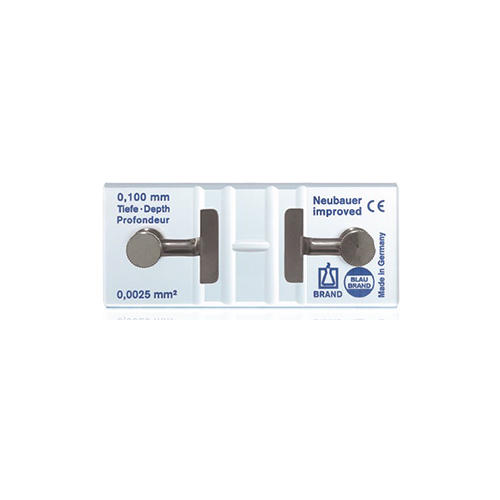

血细胞计数板,改进Neubauer型,含弹簧夹 717820
市场价格
¥99999
经销商价
¥0
所属品牌
Brand/普兰德
货号
717820
最小单位
产品库存
现货0
商品介绍
1片/盒
包装单位
数       量
温馨提示:我公司实验室产品会根据市场需求进行更新,产品详情图片仅供参考,以实际收到货物为准。

商品详情:

Manufactured according to DIN 12 847, including 2 haemacytometer cover glasses.

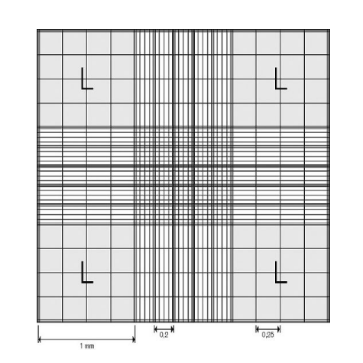

The ruling shows 9 large squares of 1 mm² each.

The four large squares in the corners marked "L" for counting leucocytes are each subdivided into 16 squares with 0.25 mm sides.

The large square in the center is subdivided into 16 squares with 0.25 mm sides.

The large square in the center is subdivided into 25 group squares of 0.2 mm sides. Each group square consists of 16 mini squares with 0.05 mm sides, each having an area of 0.0025 mm². The 5 group squares in the large central square are used for counting thrombocytes and erythrocytes.



All group squares have triple boundary lines on each side. The central line is the limiting line and determines whether cells in the marginal area shall be included in the count or not.
